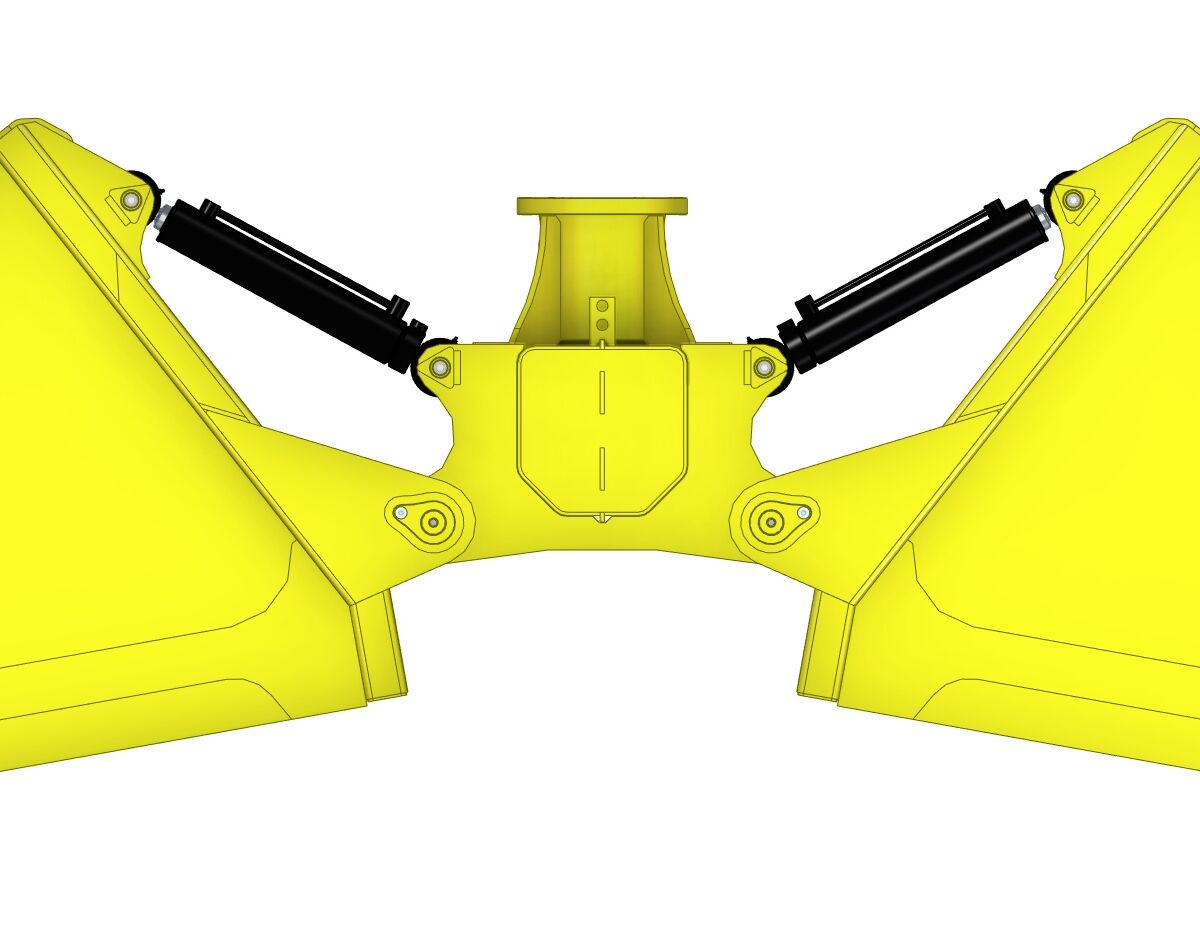

Soovin pakkumist Kergmaterjali kopphaarats mudel EXB-SCL
EXB-SCL
Kopphaarats on mõeldud materjalile erikaaluga kuni 0,8 t/m³
Tehnilised andmed

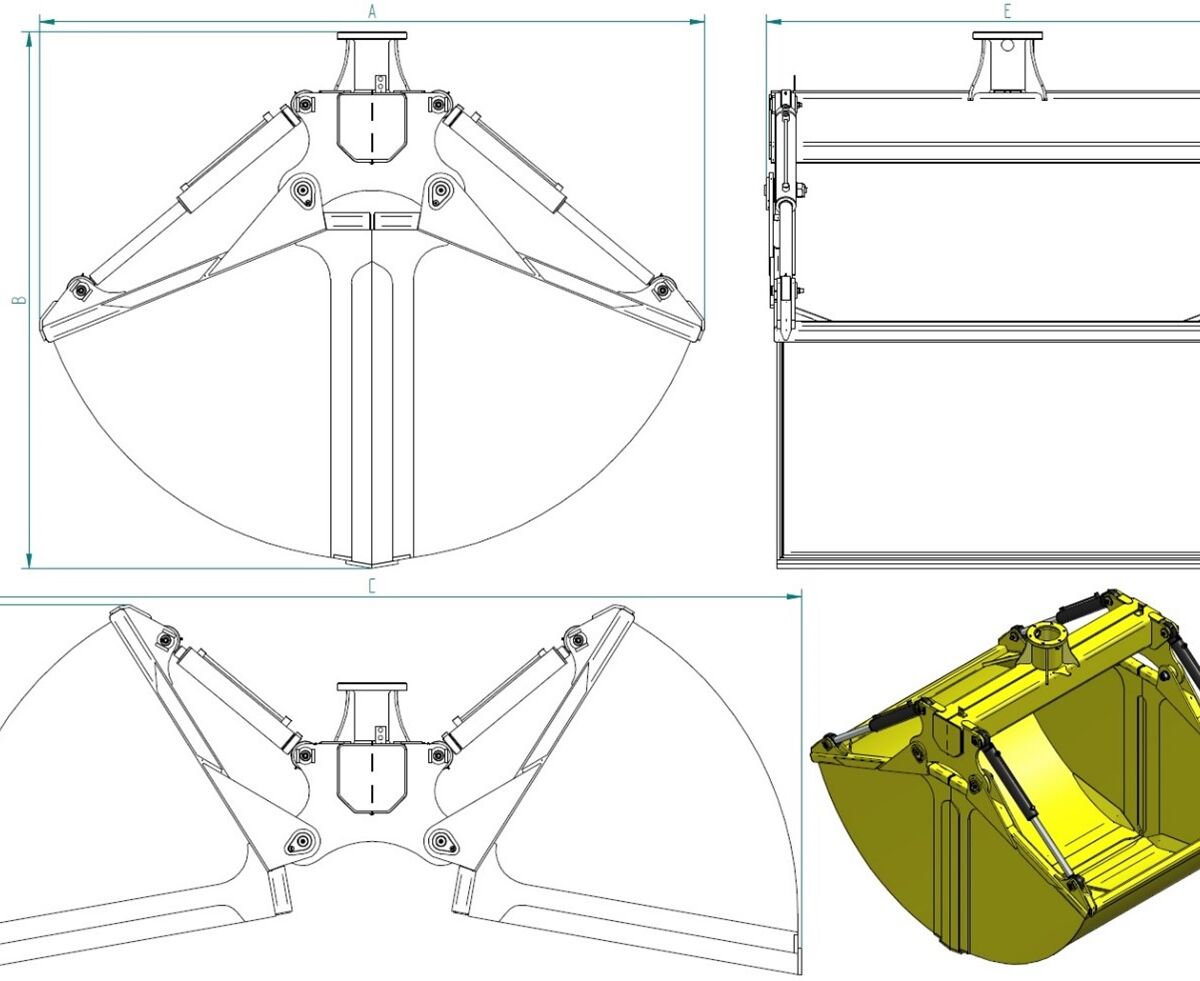

| Tüüp | Haaratsi mahutavus | Kaal | Mõõdud millimeetrites | Materjali tihedus | SWL | ||||
| SCL | m³ | kg | A | B | C | D | E | t/m³ | t |
| SCL-5.0 | 5 | 2550 | 3010 | 2580 | 4230 | 1660 | 2010 | 0.8 | 4 |
| SCL-6.0 | 6 | 2600 | 3010 | 2580 | 4230 | 1660 | 2370 | 0.8 | 4.8 |
| SCL-7.0 | 7 | 2720 | 3010 | 2580 | 4230 | 1660 | 2710 | 0.8 | 5.6 |
| SCL-8.0 | 8 | 2880 | 3010 | 2580 | 4230 | 1660 | 3040 | 0.8 | 6.4 |
| SCL-9.0 | 9 | 3300 | 3620 | 2980 | 4730 | 2020 | 2420 | 0.8 | 7.2 |
| SCL-10.0 | 10 | 3410 | 3850 | 3100 | 4970 | 2140 | 2420 | 0.8 | 8 |
| SCL-12.0 | 12 | 3590 | 3850 | 3100 | 4970 | 2140 | 2820 | 0.8 | 9.6 |
