Kõik seadmed
Hüdrauliline Puiduhaarats
Soovin pakkumist Puiduhaarats mudel EXB-GC
EXB-GC
Puiduhaarats universaalse puidu käitlemise jaoks – intgreeritud kettidega
Tehnilised andmed

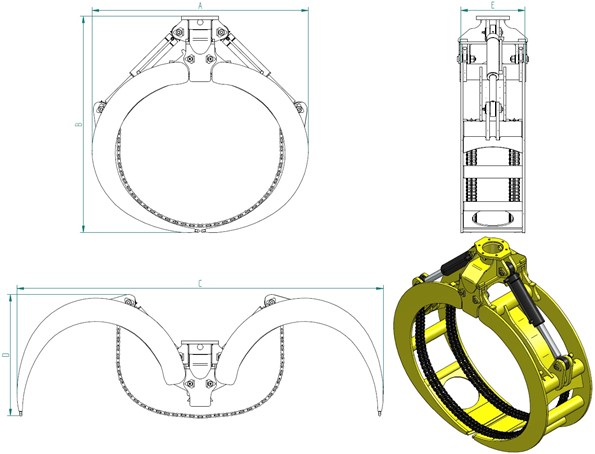

| Tüüp | Haaratsi mahutavus | Kaal | Mõõdud millimeetrites | Palgi pikkus | SWL | ||||
| GC | m² | kg | A | B | C | D | E | m | t |
| GC-1.5 | 1.5 | 1700 | 2110 | 2070 | 3210 | 1250 | 780 | 3.5 | 5 |
| GC-1.5 | 1.5 | 1850 | 2110 | 2070 | 3210 | 1250 | 780 | 8 | 10 |
| GC-1.75 | 1.75 | 1930 | 2230 | 2190 | 3440 | 1350 | 780 | 7 | 10 |
| GC-2.0 | 2 | 2150 | 2260 | 2290 | 3750 | 1350 | 780 | 6 | 10 |
| GC-2.6 | 2.6 | 2300 | 2440 | 2550 | 4260 | 1510 | 780 | 6 | 10 |
| GC-3.0 | 3 | 2500 | 2630 | 2630 | 4450 | 1480 | 780 | 5.5 | 10 |
| GC-4.0 | 4 | 2800 | 2980 | 2940 | 5140 | 1630 | 780 | 4 | 10 |
