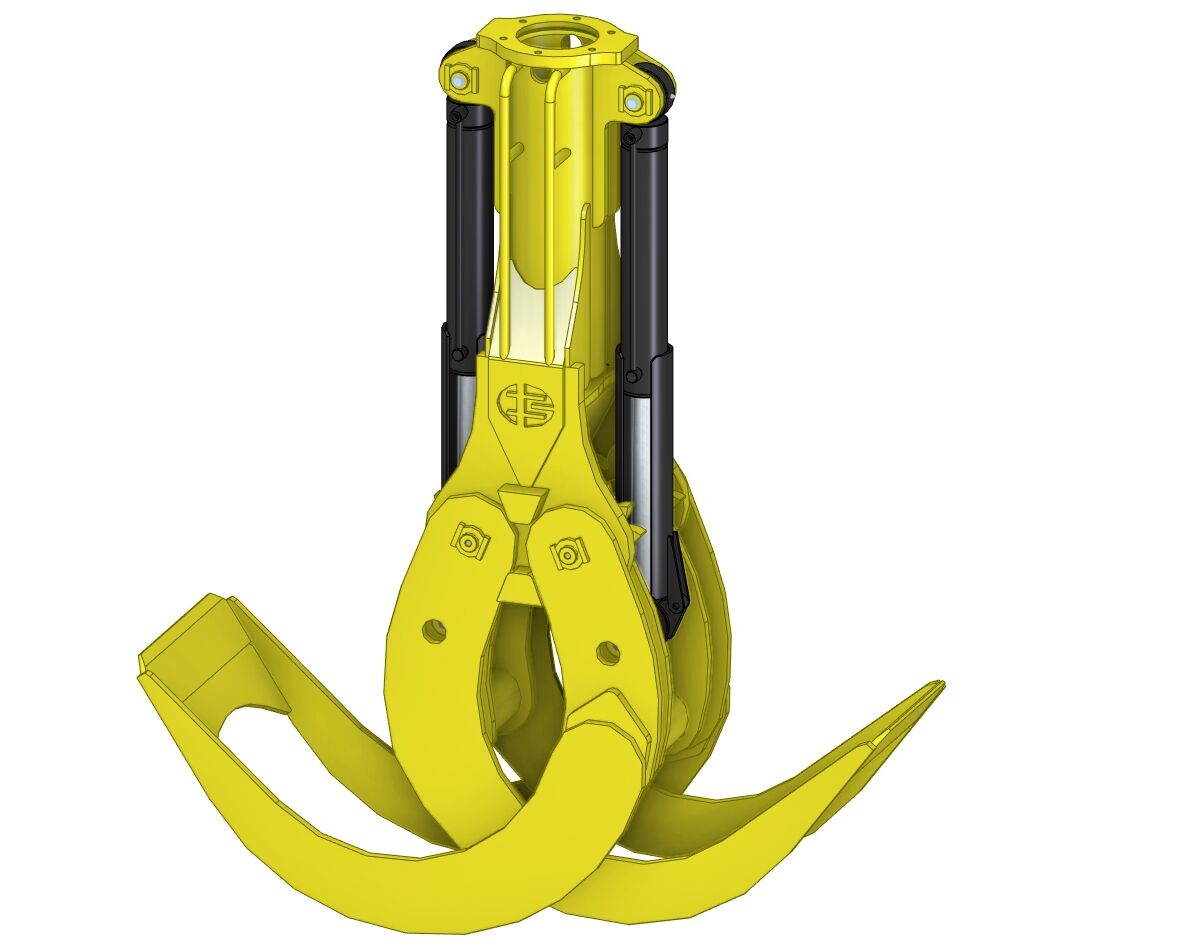

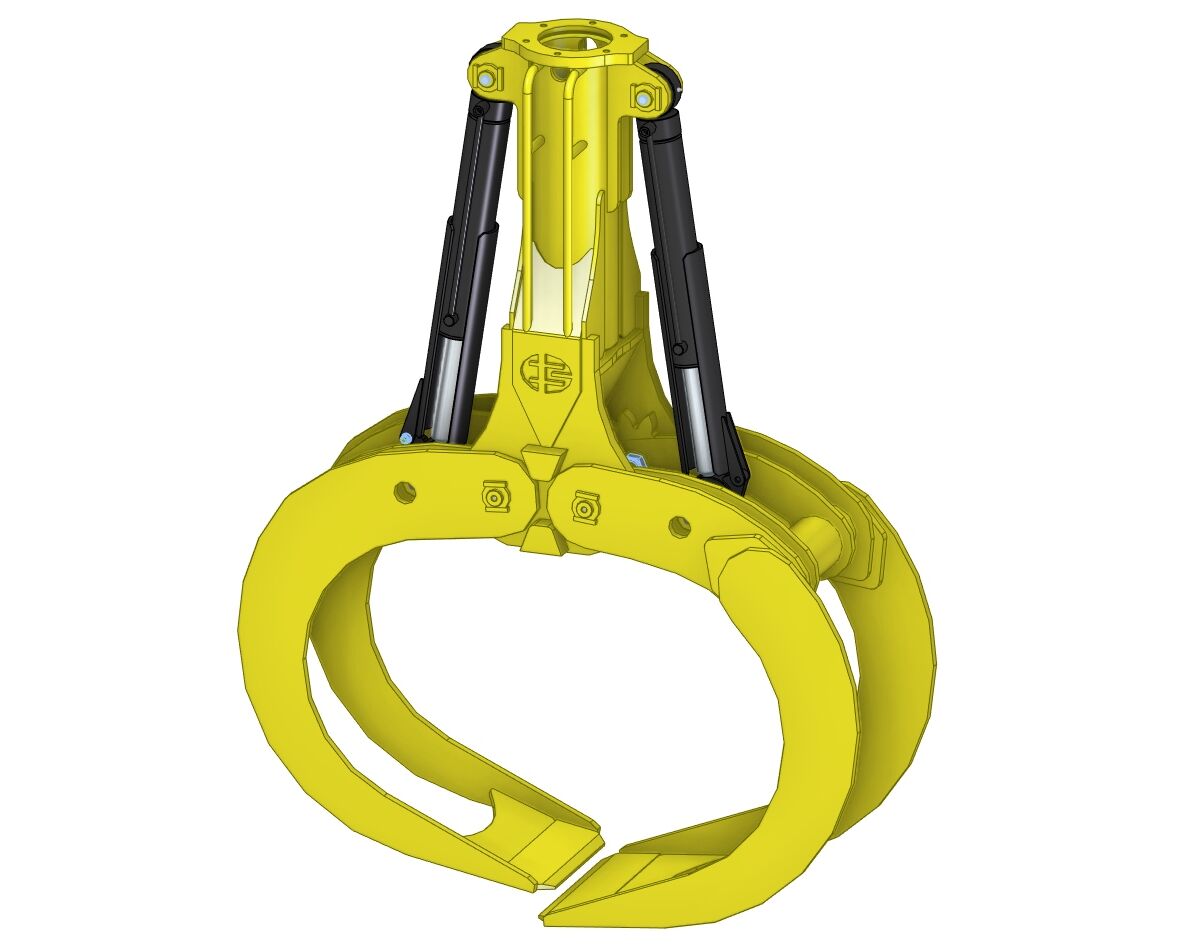

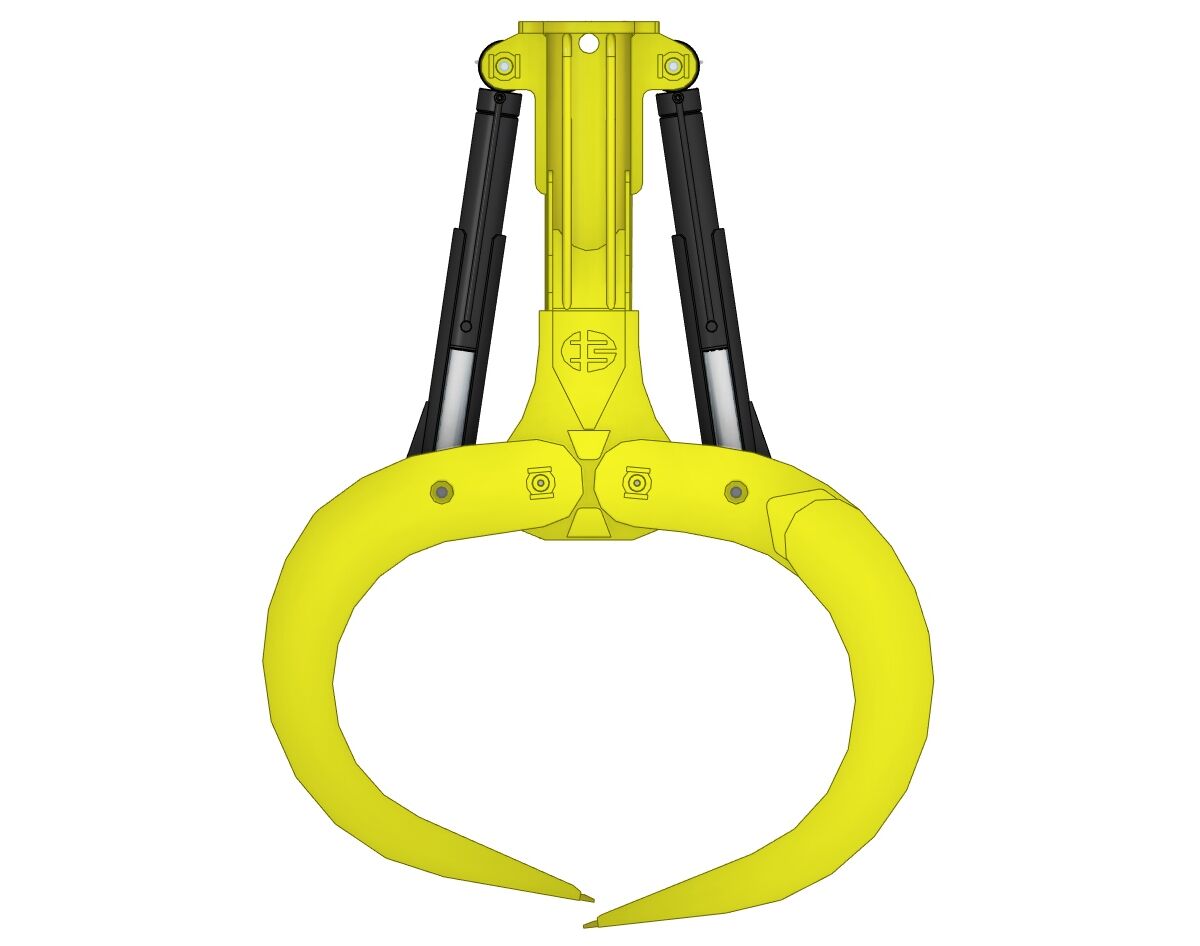

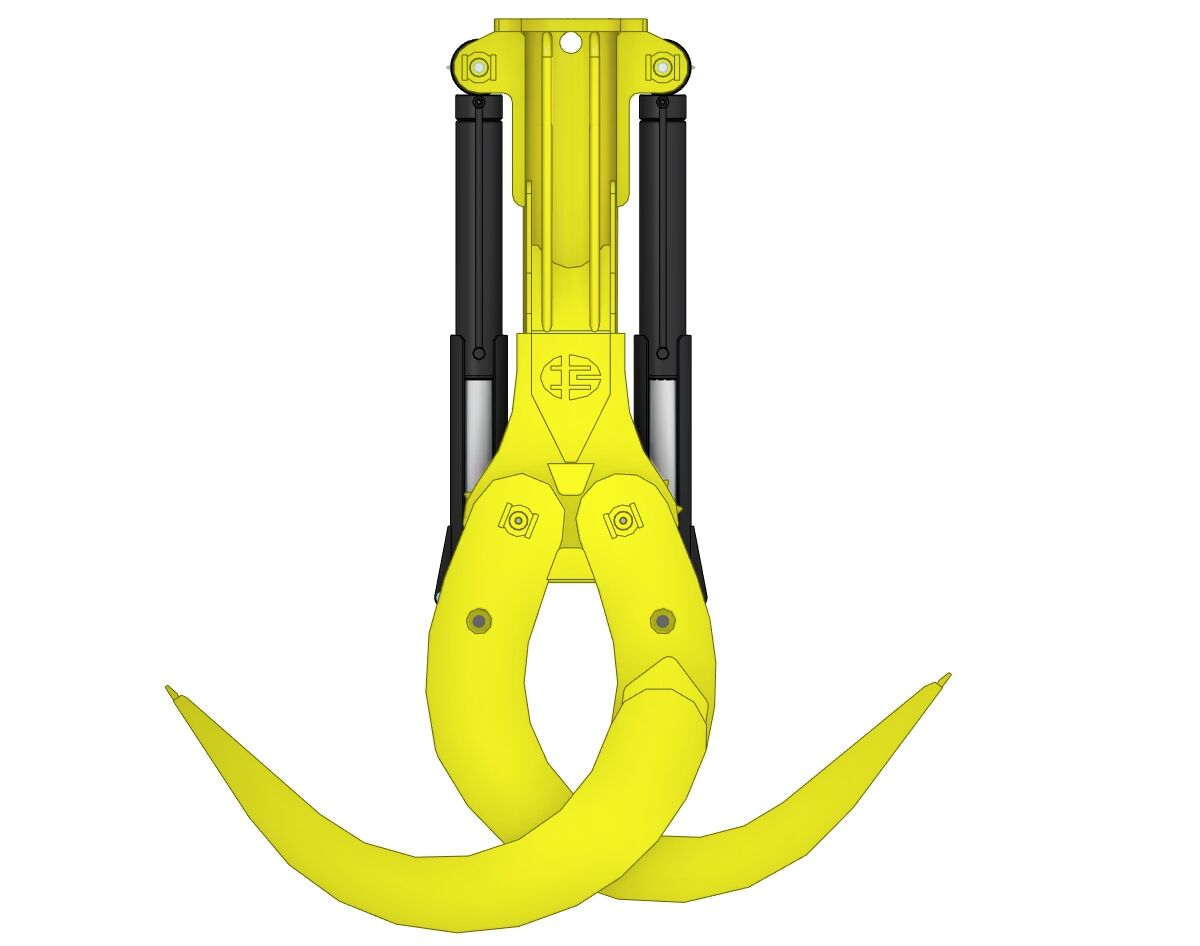

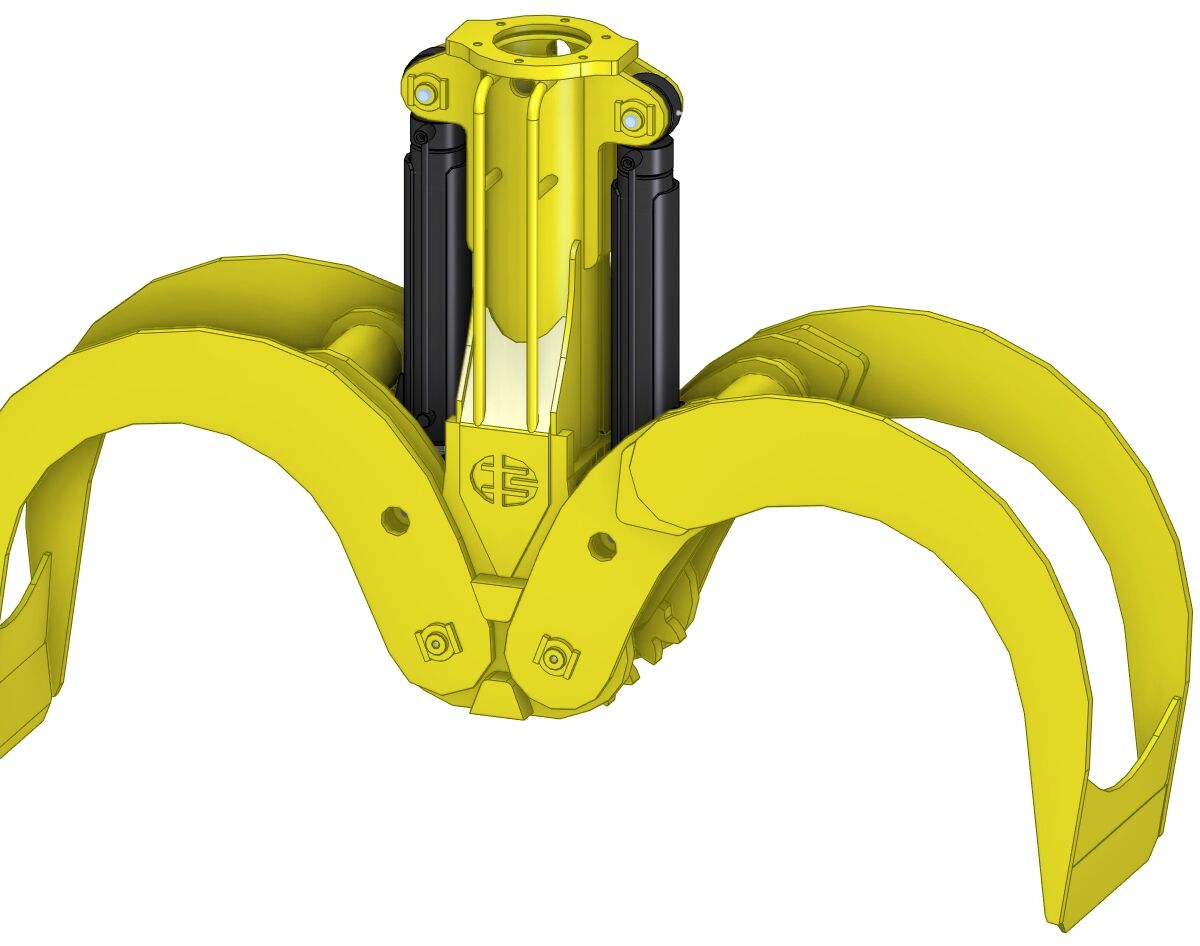

I would like an offer Timber Grab Type GT
EXB-GT
Grab for the universal timber handling.
Specifications

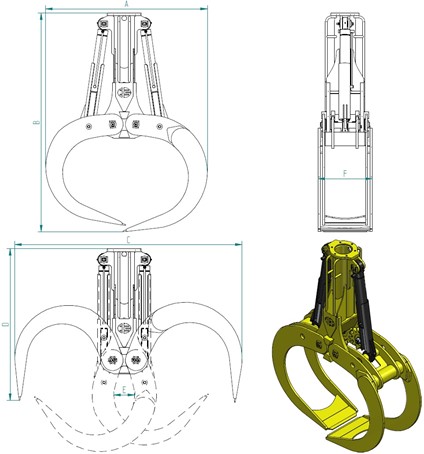

| Type | Grab capacity | Dead weight | Dimensions in mm | Length of log | SWL | |||||
| EXB-GT | m² | kg | A | B | C | D | E | F | m | t |
| GT-1.25 | 1.25 | 1650 | 1980 | 2820 | 2800 | 2010 | 250 | 700 | 4 | 5 |
| GT-1.5 | 1.5 | 1720 | 2080 | 2990 | 3100 | 2100 | 250 | 700 | 3 | 5 |
| GT-1.75 | 1.75 | 2270 | 2300 | 3100 | 3230 | 2180 | 290 | 770 | 7 | 10 |
| GT-2.0 | 2 | 2350 | 2410 | 3230 | 3460 | 2210 | 300 | 770 | 6 | 10 |
| GT-2.25 | 2.25 | 2480 | 2580 | 3420 | 3660 | 2250 | 300 | 770 | 5 | 10 |
