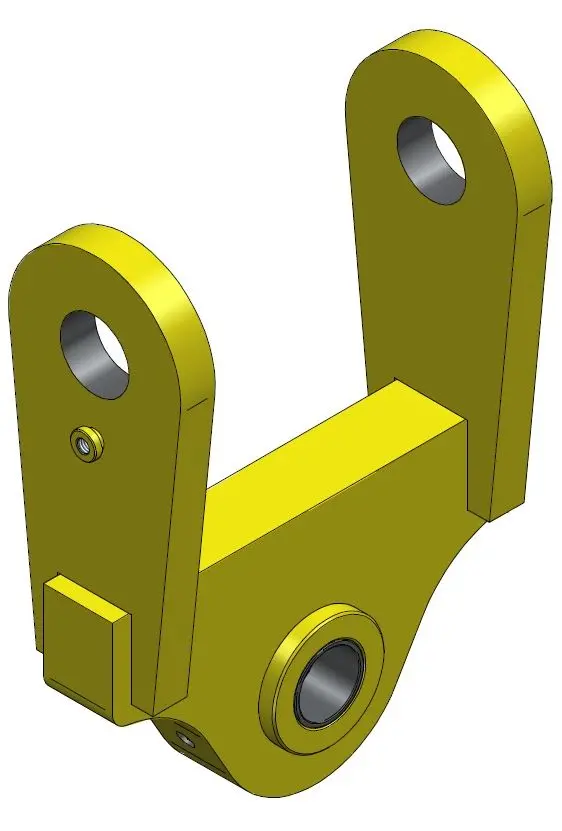

I would like an offer Suspension Type EXB-SUS
EXB-SUS
Quick connection to attatch and remove devices fast from the machine
Specifications

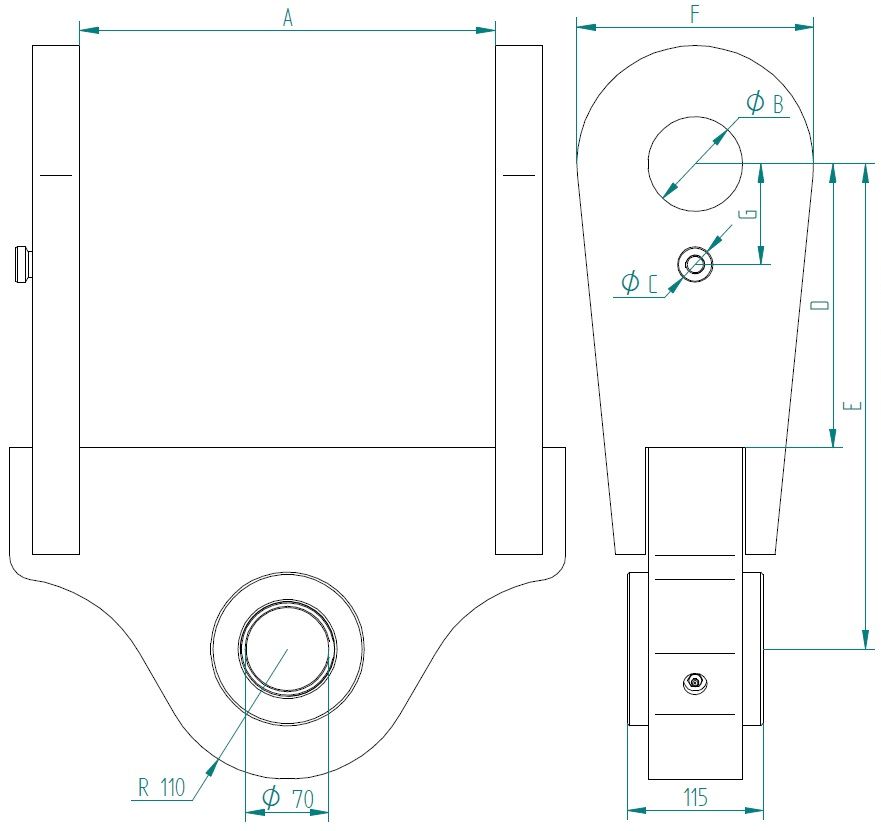

| Type | Machine | Weight | SWL | Dimensions in mm | ||||||
| EXB-SUS | Type | kg | kg | A | B | C | D | E | F | G |
| SUS-B1 | SNB 875-880 | 135 | 20000 | 500 | 100 | 40 | 350 | 520 | 220 | 125 |
| SUS-B2 | SNB 860-870 | 105 | 20000 | 351 | 80 | 30 | 240 | 410 | 200 | 85 |
| SUS-B3 | SNB 815-850 | 105 | 20000 | 351 | 60 | 30 | 240 | 410 | 200 | 75 |
| SUS-B4 | MAN 120R | 110 | 20000 | 443 | 80 | 30 | 240 | 410 | 200 | 85 |
| SUS-B5 | MHL 390 | 105 | 20000 | 341 | 80 | 30 | 260 | 430 | 200 | 85 |
