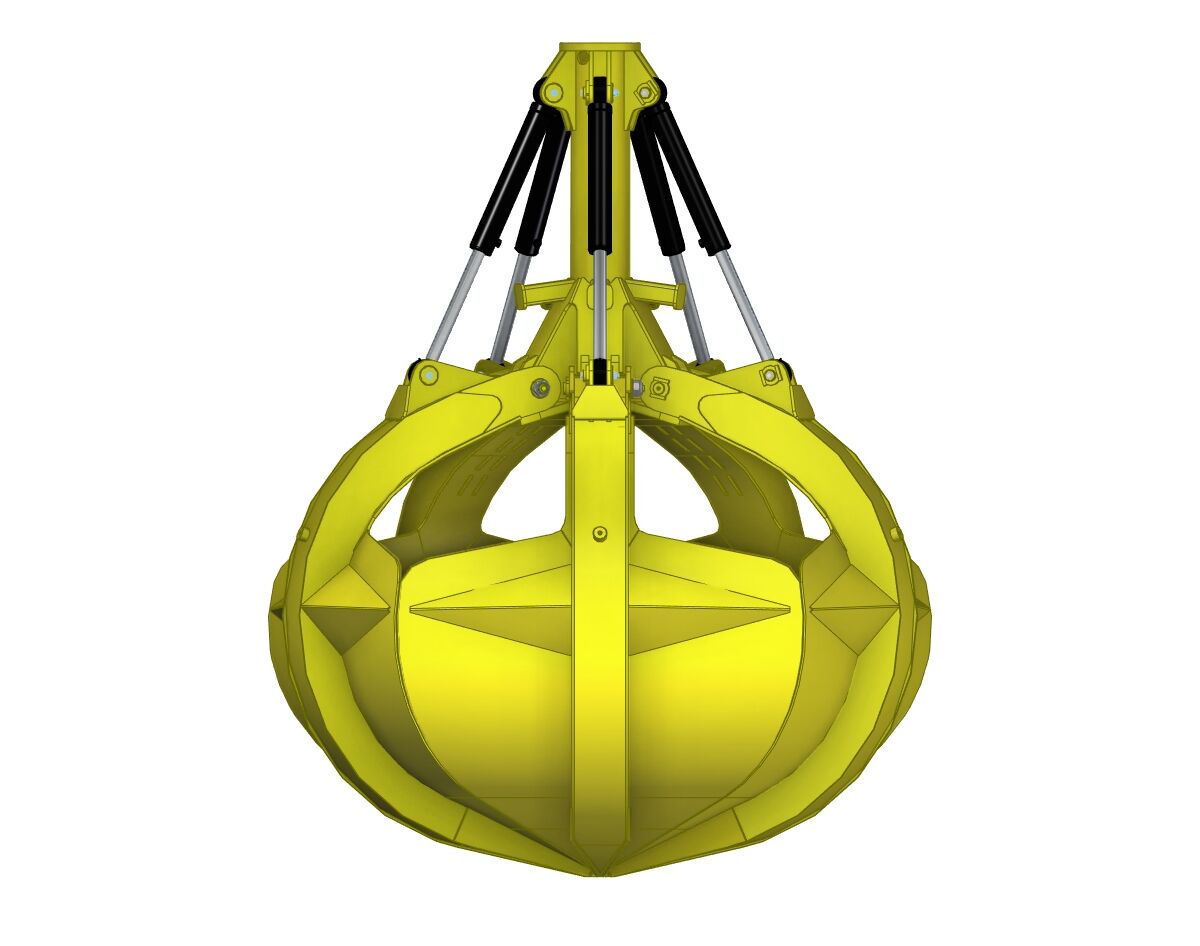

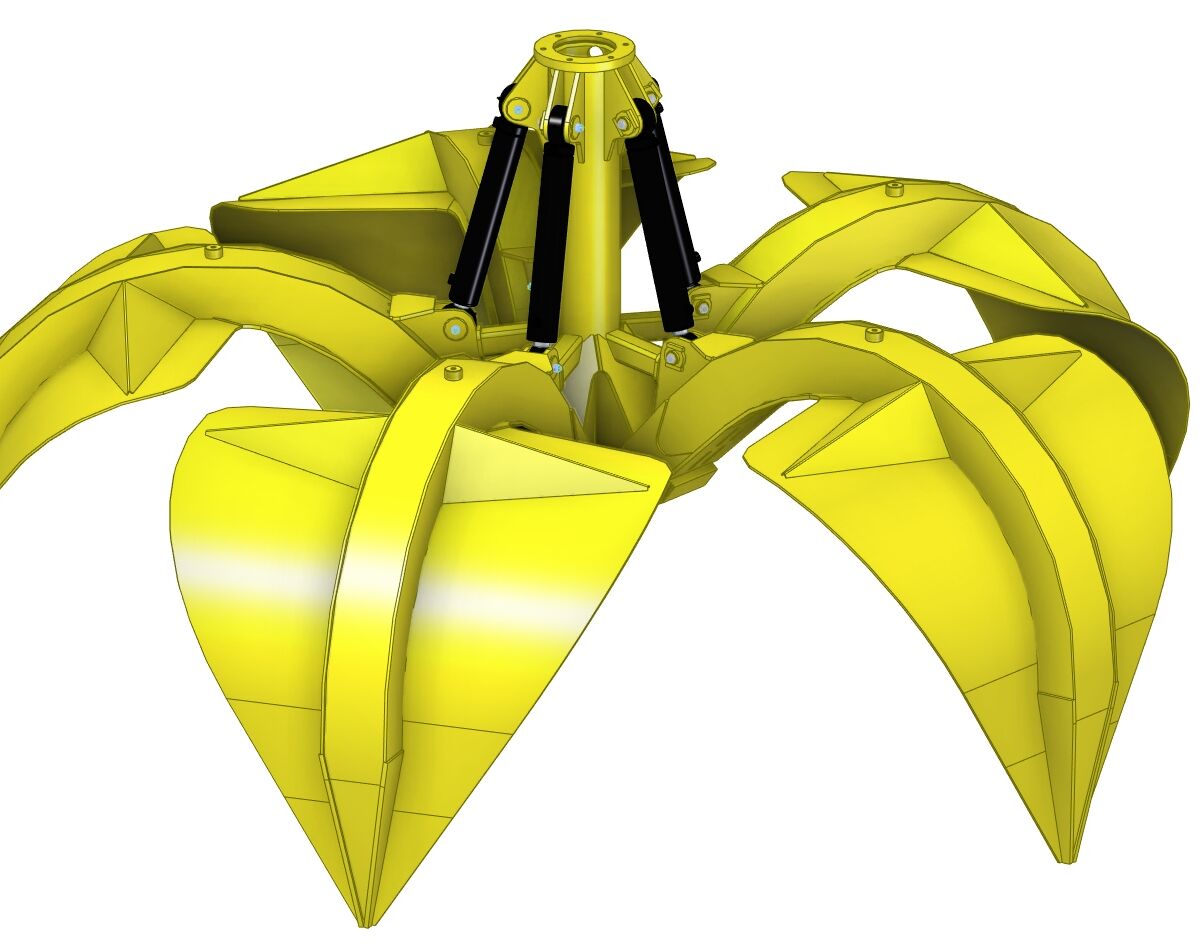

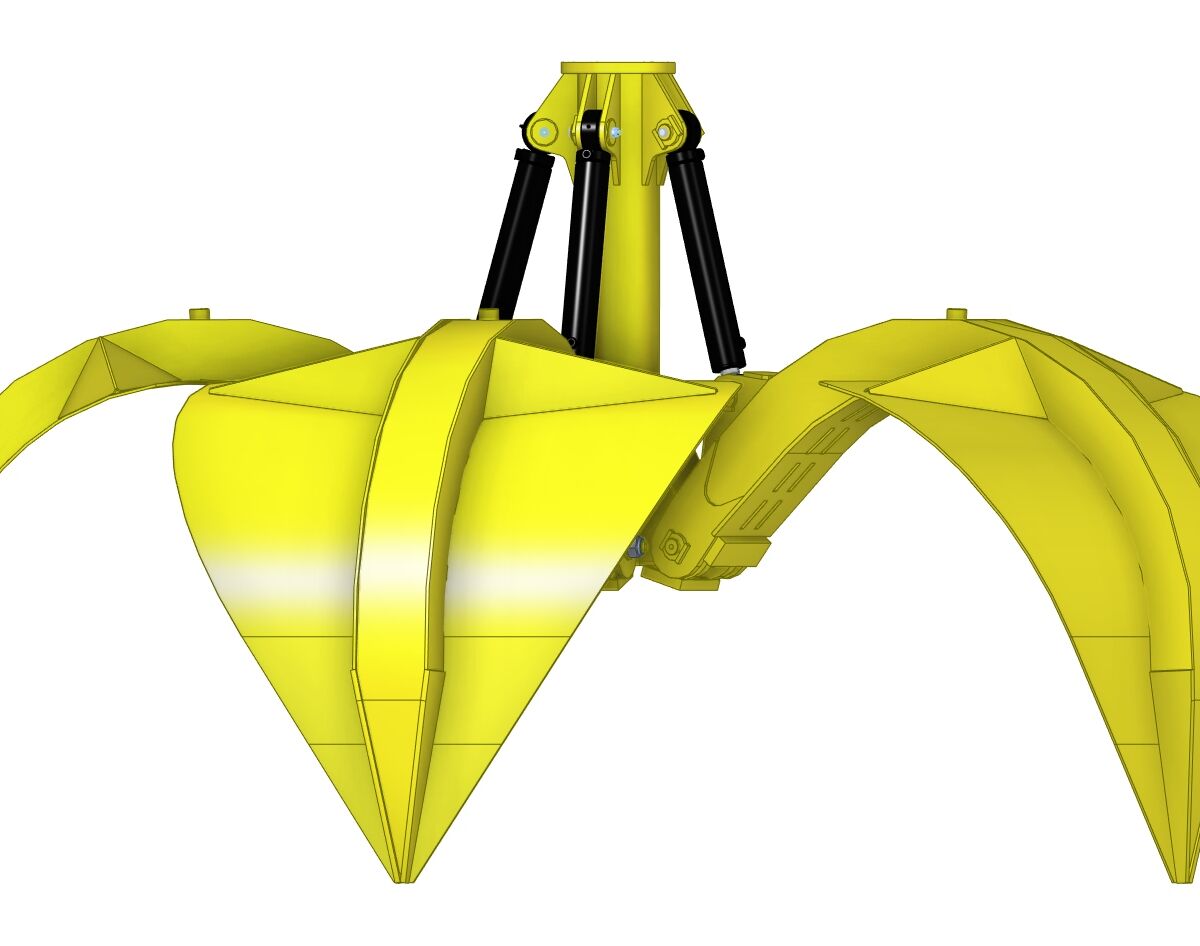

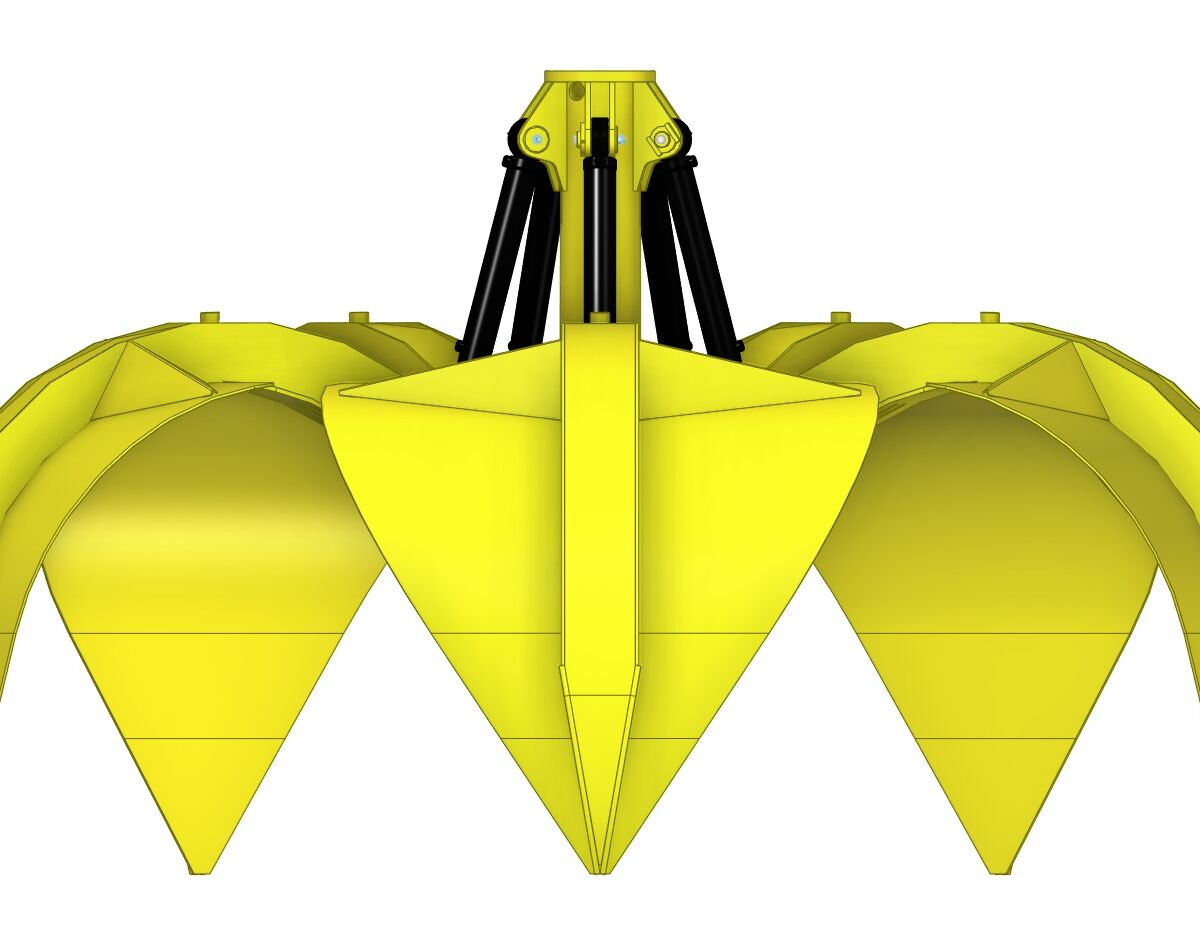

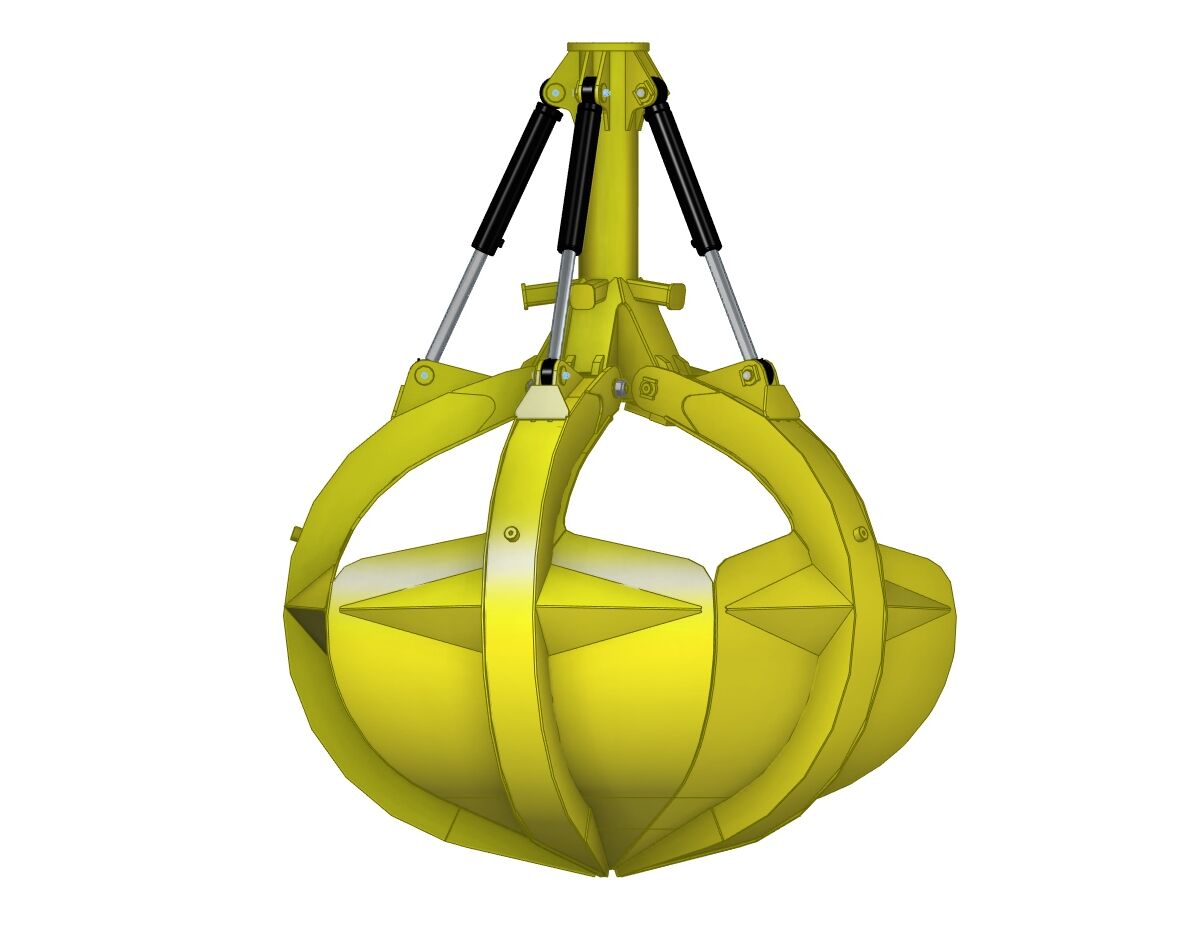

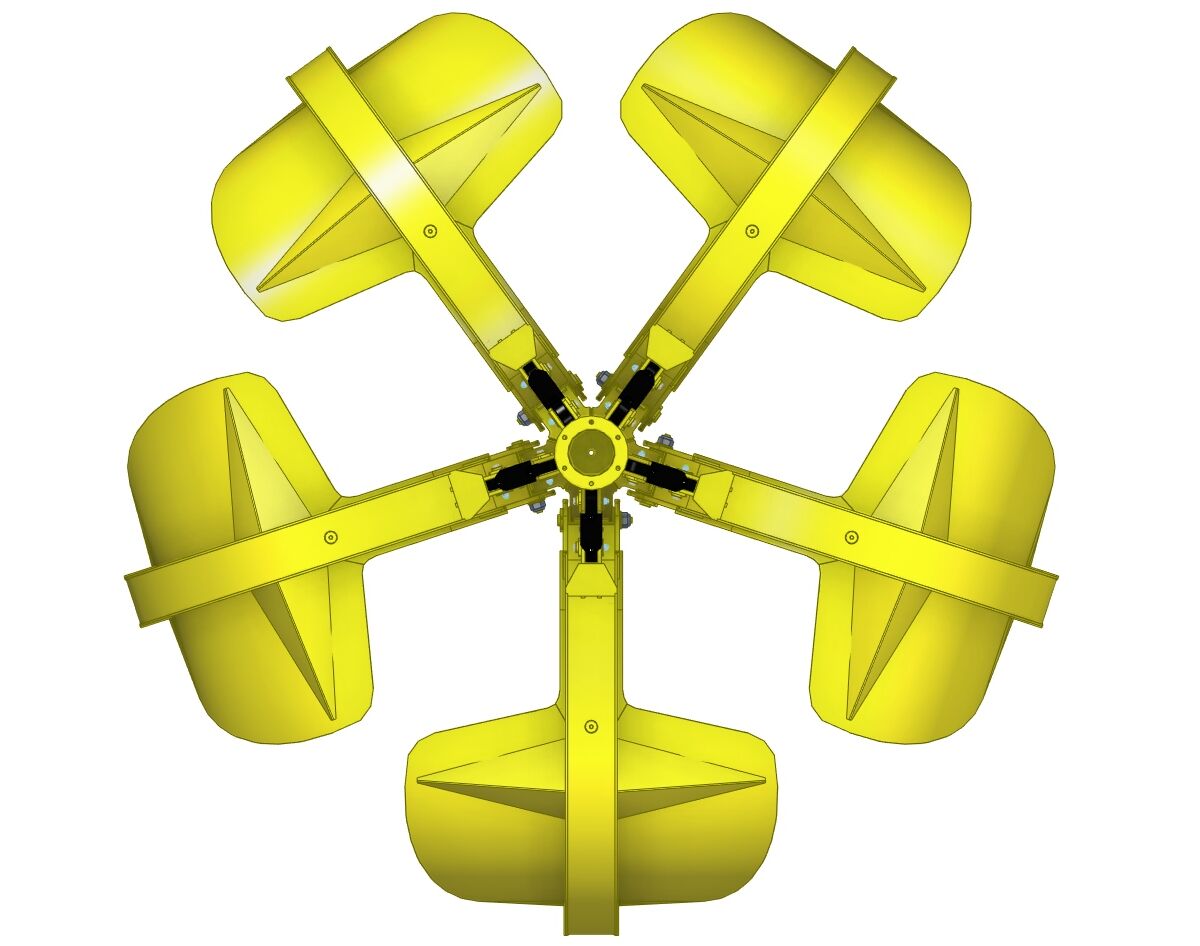

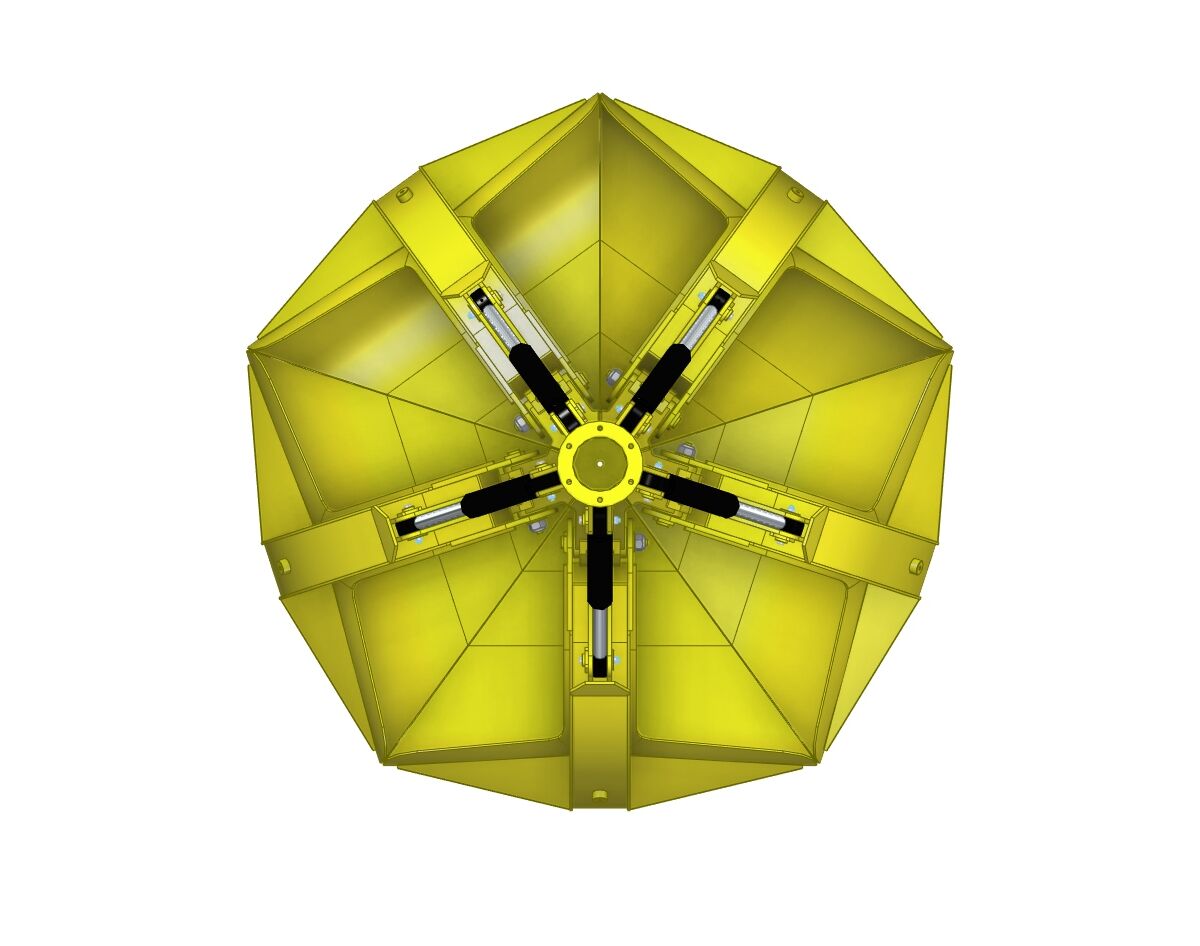

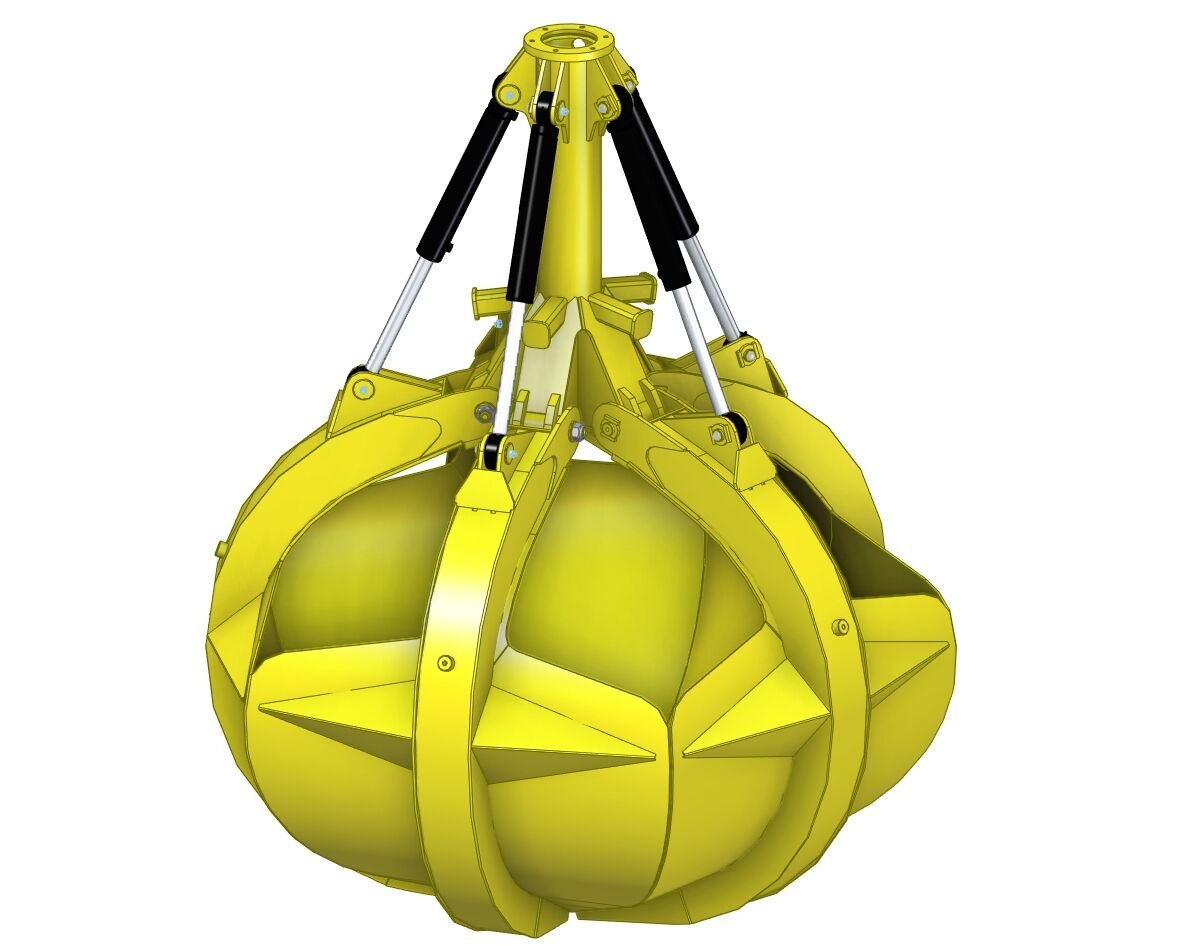

I would like an offer Light Material Polygrab Type GOP
EXB-GOP
Grab for materials with piled density up to 0,6 t/m³
Specifications

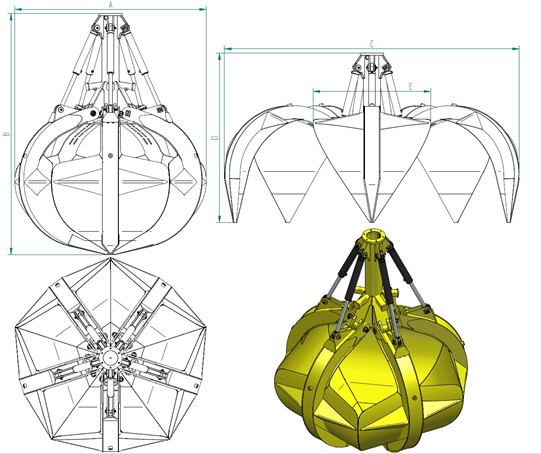

Type | Grab capacity | Dead weight | Dimensions in mm | Material density | SWL | ||||
EXB-GOP | m³ | kg | A | B | C | D | E | t/m³ | T |
GOP-6.0 | 6 | 3000 | 2860 | 3320 | 4240 | 2220 | 1760 | 0.6 | 3.6 |
GOP-8.0 | 8 | 4150 | 3070 | 4010 | 4760 | 2880 | 1890 | 0.6 | 4.8 |
GOP-10.0 | 10,0 | 4550 | 3350 | 4220 | 5170 | 2960 | 2060 | 0.6 | 6 |
GOP-12.0 | 12 | 4700 | 3530 | 4240 | 5290 | 2960 | 2170 | 0.6 | 7.2 |
