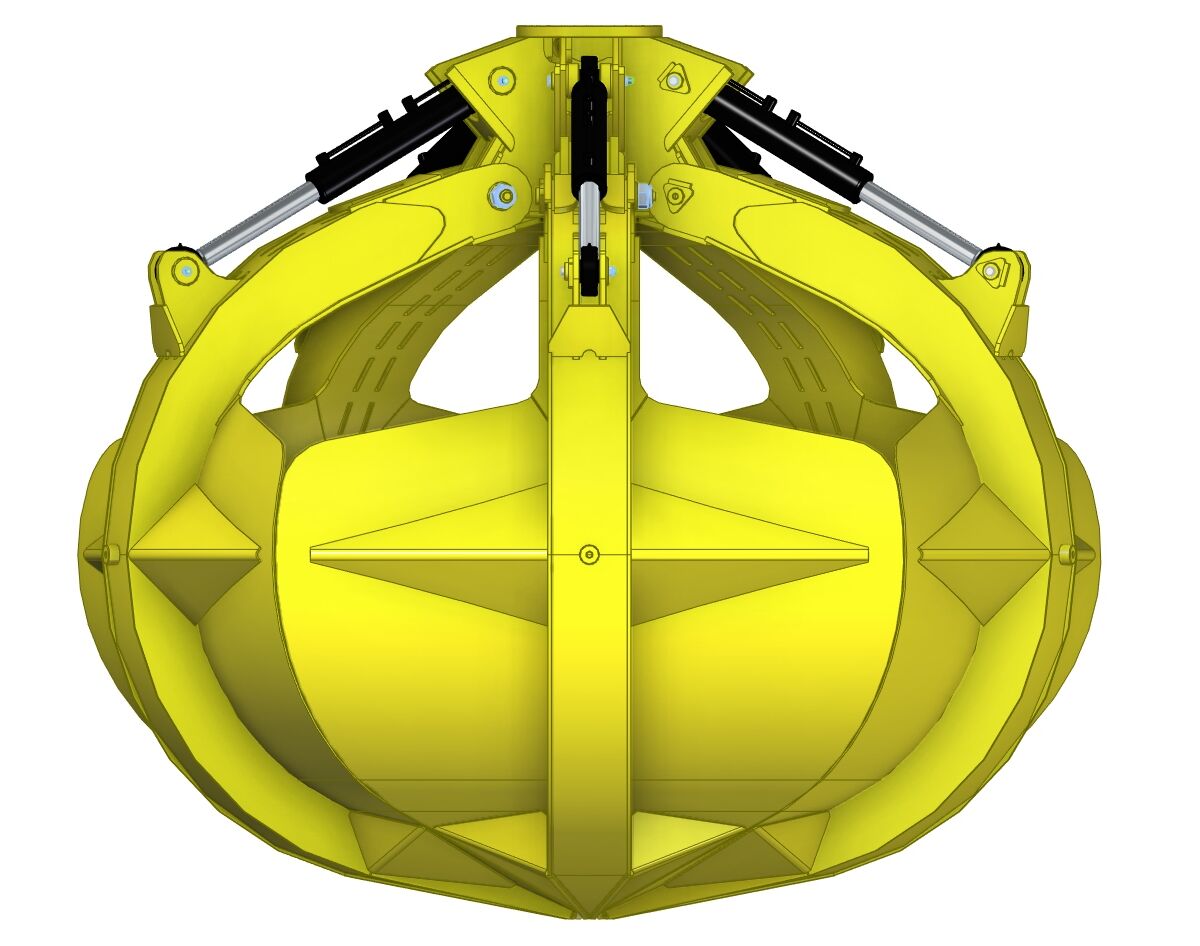

I would like an offer Light Material Handling Grab Type GOPL
EXB-GOPL
Grab for materials with piled density up to 0,6 t/m³
Specifications

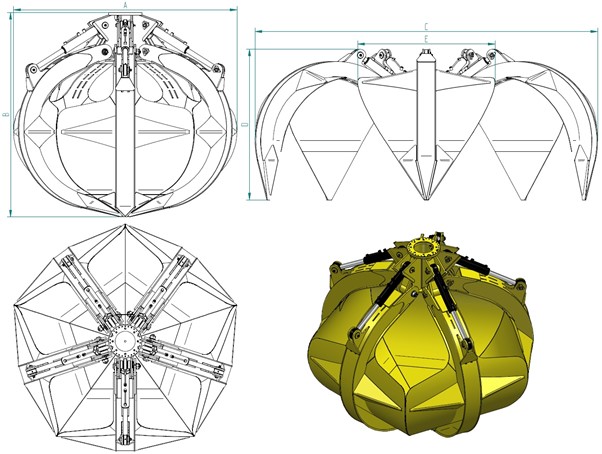

| Type | Grab capacity | Dead weight | Dimensions in mm | Material density | SWL | ||||
| EXB-GOPL | m³ | kg | A | B | C | D | E | t/m³ | T |
| GOPL-6.5 | 6.5 | 3100 | 2980 | 2620 | 4630 | 1750 | 1830 | 0.6 | 4 |
| GOPL-10.0 | 10 | 4600 | 3350 | 3060 | 5150 | 2260 | 2060 | 0.6 | 6 |
| GOPL-12.0 | 12 | 4770 | 3530 | 3080 | 5290 | 2260 | 2170 | 0.6 | 7.2 |
