I would like an offer Light Material Clamshell Type SCGL
EXB-SCGL
Clamshell grab for grain with piled density up to 1,0 t/m³
Specifications

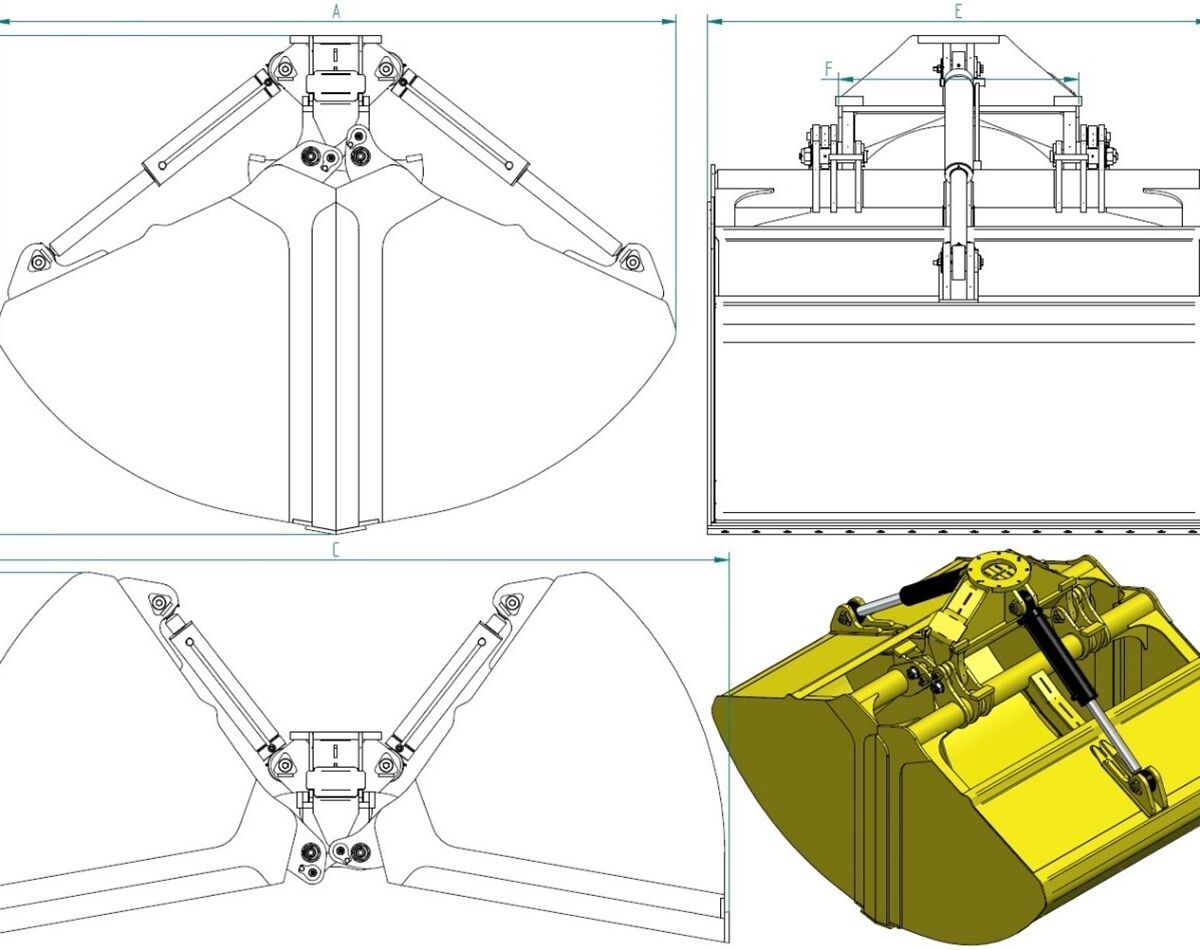

| Type | Grab capacity | Dead weight | Dimensions in mm | Material density | SWL | |||||
| EXB-SCGL | m³ | kg | A | B | C | D | E | F | t/m³ | t |
| SCGL-6.0 | 6 | 3460 | 2920 | 2320 | 3560 | 1640 | 2180 | 1230 | 1 | 6 |
| SCGL-7.0 | 7 | 3600 | 3110 | 2420 | 3820 | 1620 | 2180 | 1230 | 1 | 7 |
| SCGL-8.0 | 8 | 3830 | 3210 | 2480 | 3930 | 1670 | 2340 | 1230 | 1 | 8 |
| SCGL-9.0 | 9 | 4000 | 3210 | 2480 | 3930 | 1670 | 2600 | 1230 | 1 | 9 |
| SCGL-10.0 | 10 | 4450 | 3500 | 2560 | 4040 | 1900 | 2580 | 1230 | 1 | 10 |
| SCGL-12.0 | 12 | 4850 | 3500 | 2560 | 4040 | 1900 | 3080 | 1230 | 1 | 12 |
