I would like an offer Light Material Clamshell Type SCG
EXB-SCG
Clamshell grab for grain with piled density up to 1,0 t/m³
Specifications

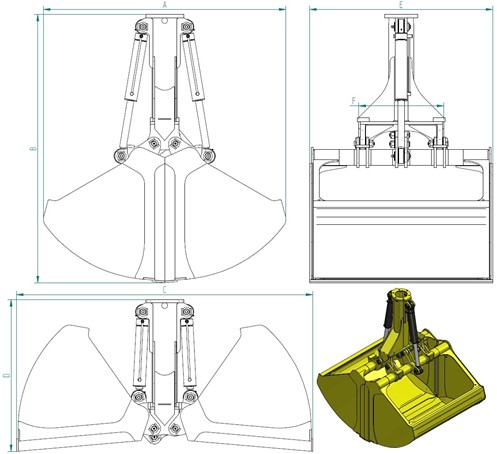

| Type | Grab capacity | Dead weight | Dimensions in mm | Material density | SWL | |||||
| EXB-SCG | m³ | kg | A | B | C | D | E | F | t/m³ | t |
| SCG-3.0 | 3 | 2570 | 2200 | 2830 | 2800 | 1780 | 1890 | 1010 | 1 | 3 |
| SCG-4.0 | 4 | 2660 | 2430 | 2920 | 2980 | 1790 | 2110 | 1010 | 1 | 4 |
| SCG-5.0 | 5 | 2780 | 2660 | 3060 | 3260 | 1800 | 2160 | 1010 | 1 | 5 |
| SCG-6.0 | 6 | 2980 | 2890 | 3200 | 3540 | 1810 | 2180 | 1010 | 1 | 6 |
| SCG-7.0 | 7 | 3350 | 3070 | 3300 | 3740 | 1820 | 2280 | 1010 | 1 | 7 |
| SCG-8.0 | 8 | 3650 | 3070 | 3300 | 3740 | 1820 | 2580 | 1010 | 1 | 8 |
