I would like an offer Heavy Duty Clamshell Type SCHL
EXB-SCHL
Clamshell grab for materials with piled density up to 2,0 t/m³ and granule size up to 40mm
Specifications

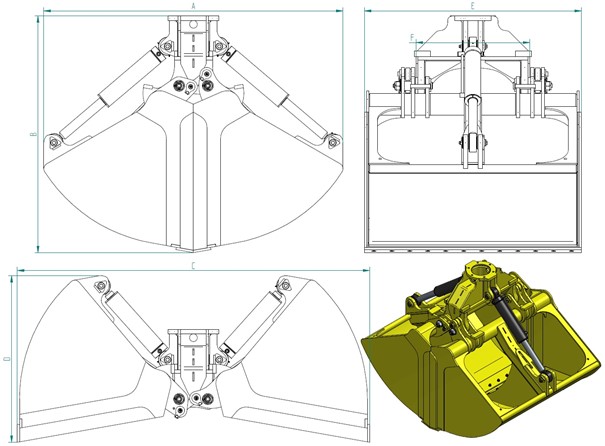

| Type | Grab capacity | Dead weight | Dimensions in mm | Material density | SWL | |||||
| EXB-SCHL | m³ | kg | A | B | C | D | E | F | t/m³ | t |
| SCHL-3.0 | 3 | 2900 | 2560 | 2040 | 3020 | 1430 | 1680 | 1010 | 2 | 6 |
| SCHL-4.0 | 4 | 3050 | 2660 | 2100 | 3130 | 1480 | 1930 | 1010 | 2 | 8 |
| SCHL-5.0 | 5 | 3530 | 2840 | 2210 | 3340 | 1580 | 2080 | 1010 | 2 | 10 |
| SCHL-6.0 | 6 | 3700 | 2950 | 2270 | 3460 | 1640 | 2280 | 1010 | 2 | 12 |
| SCHL-7.0 | 7 | 4200 | 3050 | 2330 | 3580 | 1700 | 2460 | 1010 | 2 | 14 |
